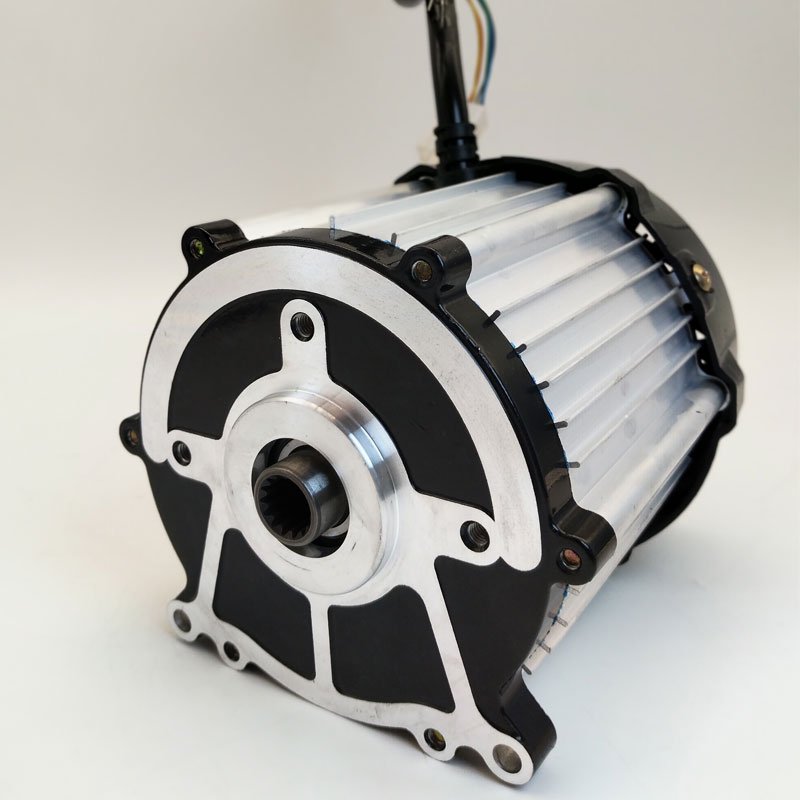

The Huanyu 120 Square Wave Motor is tailored for efficient power requirements of electric tricycles, caravans, leisure vehicles, and hand carts.
This motor stands out in the market with its exceptional stability and high energy efficiency ratio.
Featuring advanced permanent magnet materials, it delivers durable and powerful output, effortlessly handling daily commutes and short trips.
Its compact design ensures easy installation while maintaining low noise and vibration during vehicle operation, providing users with a comfortable driving experience.
The Huanyu 120 Permanent Magnet Brushless Motor is the ideal choice for your electric mobility needs.
Product Advantages: Technical Strengths – Instant High Torque: Enables rapid acceleration and strong starting power, perfect for urban driving and heavy-duty applications.
Heavy-Duty Capacity: Ensures stable performance even when fully loaded, enhancing work efficiency
| Product specification parameters | |||
| rated voltage | 48V~72V | rated power | 350W~1800W |
| peak torque | 11N.m~35N.m | rated speed | 2500rpm~3200rpm |
| rotor height | 25mm~80mm | Magnet grade | 38H |
| Motor Color | Silver, Black | motor shaft | External gear 16 teeth, internal gear 14 teeth |
| thermal classification | F | position sensor | Hall (5-pin) |
| Protection level | IP54 | Control method | Square Wave Control |
| polar pair | 4 | working system | S2 60 min |
Product Operating Environment
| Storage Temperature Range | -40℃～85℃ |
| Working temperature range | motor：-40℃～55℃ |
| humidity | 0～95% |
