Product Introduction

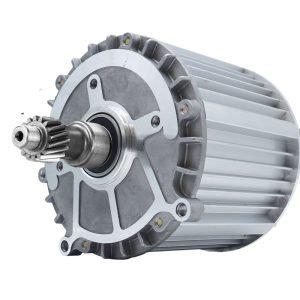

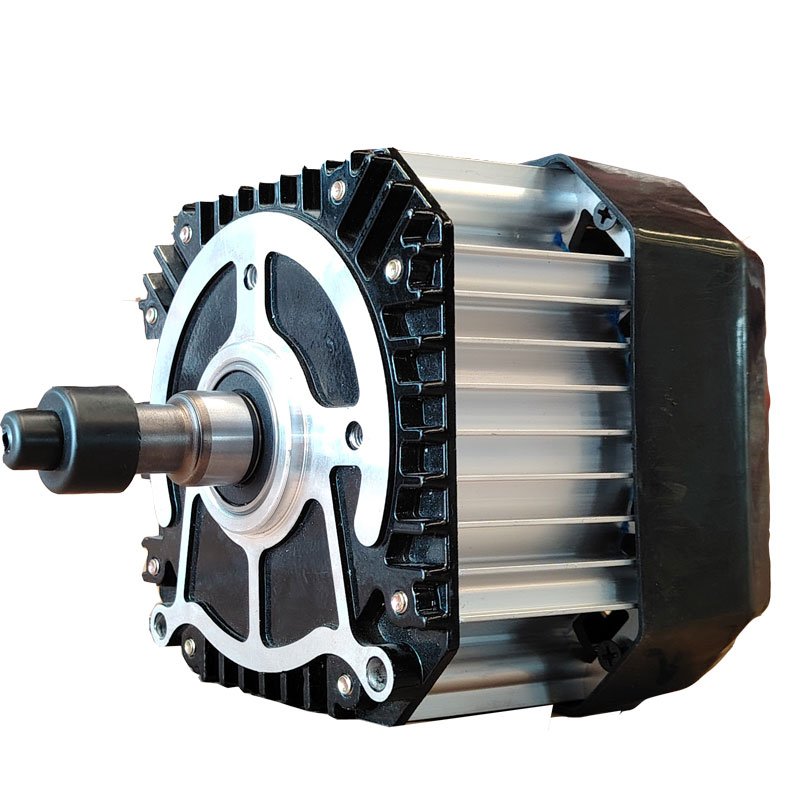

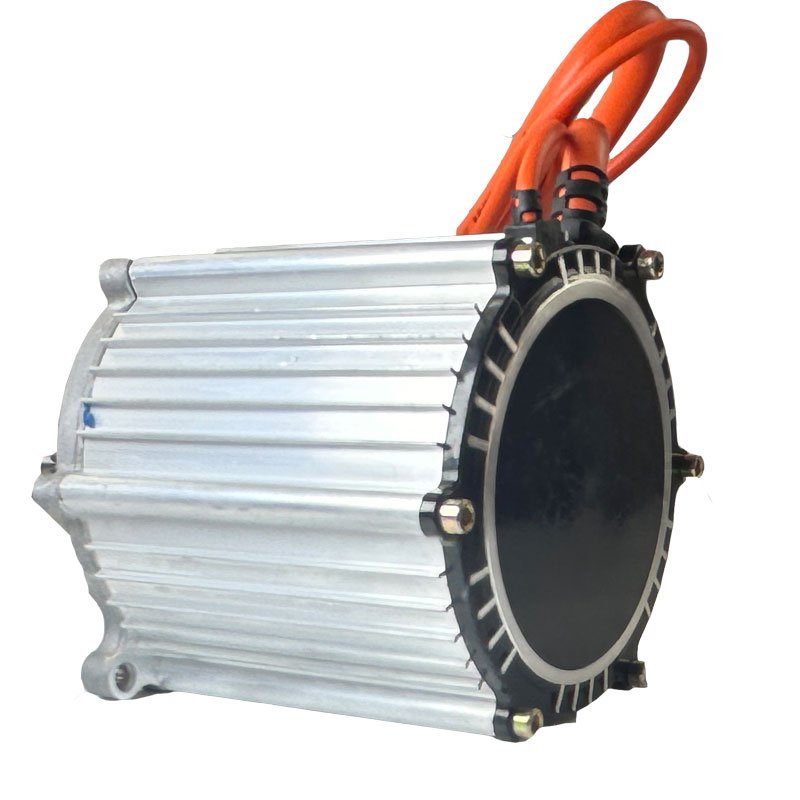

The HuanYu 120 permanent magnet synchronous motor is specifically designed to meet the efficiency demands of electric tricycles, covered wagons, leisure vehicles, and manual carts. This motor stands out in the market with its exceptional stability and high energy efficiency ratio. Equipped with advanced permanent magnet materials, it delivers durable power output, effortlessly handling daily commuting and short-distance travel.
Its compact structural design ensures easy installation while maintaining low noise and vibration during vehicle operation, providing users with a comfortable driving experience. The HuanYu 120 permanent magnet synchronous motor is the ideal choice for your electric mobility needs.
Product Advantages
1. Smooth start-up and low noise:
The field-weakening start method combined with sine wave control technology ensures minimal shock or noise during motor start-up, creating a quiet and comfortable driving environment.
2. High energy efficiency and extended range:
Compared to conventional square-wave motors, the significantly reduced transient current results in greater energy efficiency under identical conditions, substantially extending vehicle range to meet long-distance travel requirements.
3. Strong power and superior hill-climbing capability:
The embedded permanent magnet design enhances magnetic field strength, delivering powerful power output that enables vehicles to tackle steep inclines with ease.
4. Low torque ripple and rapid dynamic response:
Sine wave control effectively minimizes torque ripple, ensuring smooth and even power delivery.
Additionally, the motor’s rapid response capability allows quick execution of driver commands, improving driving flexibility and safety.
5. High stability and minimal heat generation:
The motor exhibits slow temperature rise during prolonged operation, ensuring stable performance under harsh conditions and extending service life
| Product specification parameters | |||
| rated voltage | 48V~72V | rated power | 350W~1800W |
| peak torque | 11N.m~40N.m | rated speed | 2500rpm~3500rpm |
| rotor height | 25mm~70mm | Magnet grade | 38H |
| Motor Color | Silver, Black | motor shaft | External gear 16 teeth, internal gear 14 teeth |
| thermal classification | F | position sensor | Hall (6-pin) |
| Protection level | IP54 | Control method | Sine Wave Vector Control |
| polar pair | 5 | working system | S2 60 min（350W~1000W）/S9（1200W~1500W） |
Product Operating Environment
| Storage Temperature Range | -40℃～85℃ |
| Working temperature range | motor：-40℃～55℃ |
| humidity | 0～95% |
