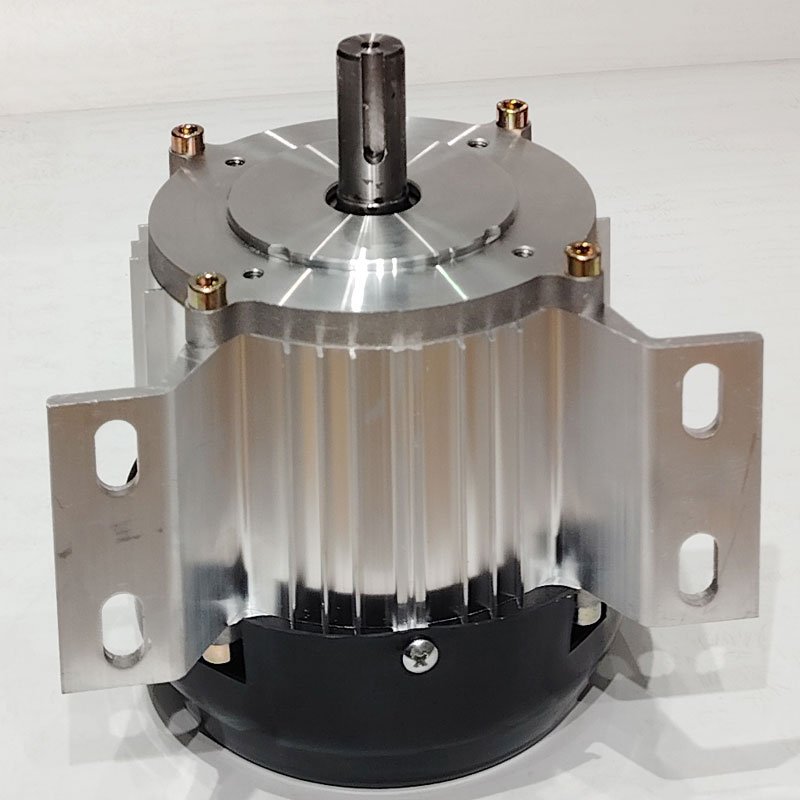

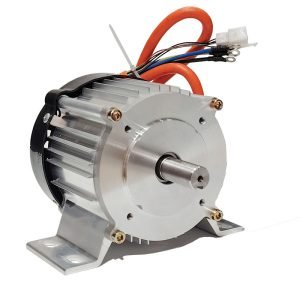

The 120-square-wave permanent magnet direct current brushless motor is tailored for high-efficiency requirements in high-pressure washers and pumps. This motor stands out in the market with exceptional stability and energy efficiency ratio. It utilizes advanced permanent magnet materials to deliver durable and robust power output, effortlessly handling mountainous and muddy terrains. Its compact structural design ensures easy installation while maintaining low noise and low vibration during vehicle operation, providing users with a comfortable driving experience. The HuanYu 120 Permanent Magnet DC Brushless Motor is the ideal choice for your electric tracked vehicles and electric lawnmowers
| Product specification parameters | |||
| rated voltage | 24V/36V/48V/60V/72V/80V | rated power | 350w-1800w |
| Motor phase number | Three-phase | rated speed | 1500rpm/3000rpm |
| rotor height | 25mm~80mm | Magnet grade | 38H |
| Motor Color | Silver | motor shaft | Keyway Shaft (Customized) |
| thermal classification | F | position sensor | Hall (5-pin) |
| Protection level | IP54 | Control method | Square Wave Control |
| polar pair | 4 | working system | S2 60 min |
Product Operating Environment
| Storage Temperature Range | -40℃～85℃ |
| Working temperature range | motor：-40℃～55℃ |
| humidity | 0～95% |
