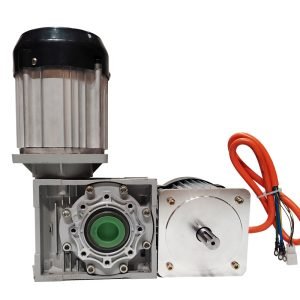

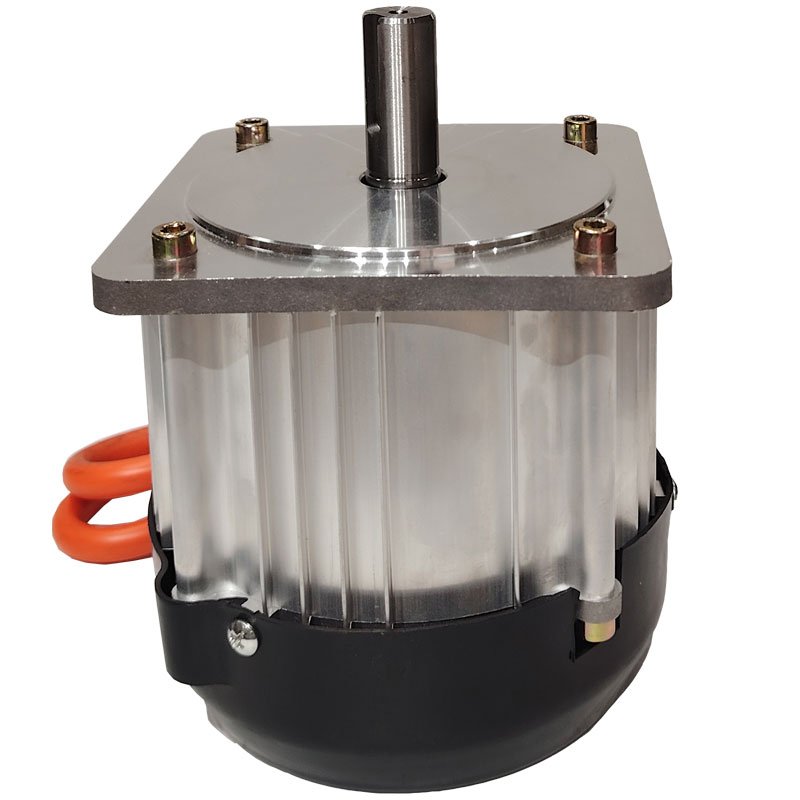

The RV series 120 square wave permanent magnet brushless DC motor is custom-designed for the efficient requirements of tracked chassis vehicles and unmanned intelligent vehicles. This motor stands out in the market for its excellent stability and energy efficiency ratio. It uses advanced permanent magnet materials to provide robust and durable power output, easily handling mountainous and muddy terrains. Its compact structural design ensures easy installation while maintaining low noise and vibration during vehicle operation, providing users with a comfortable driving experience. The HuanYu 120 permanent magnet brushless DC motor is the ideal choice for your electric tracked vehicles and electric lawn mowers.
| Product specification parameters | |||
| rated voltage | 24V/36V/48V/60V/72V/80V | rated power | 350w-1800w |
| Motor phase number | Three-phase | rated speed | 1500rpm/3000rpm |
| rotor height | 25mm~80mm | Magnet grade | 38H |
| Motor Color | Silver | motor shaft | Keyway Shaft (Customized) |
| thermal classification | F | position sensor | Hall (5-pin) |
| Protection level | IP54 | Control method | Square Wave Control |
| polar pair | 4 | working system | S2 60 min |
Product Operating Environment
| Storage Temperature Range | -40℃～85℃ |
| Working temperature range | motor：-40℃～55℃ |
| humidity | 0～95% |
